C906
Compatible with RISC-V architecture, C906 adopts standard memory management unit and can run Linux and other operating systems. C906 is designed with 5-stage integer pipeline and is optional with high-performance single/double-precision floating point and 128-bit vector computing unit. It is applicable to consumer IPC, multimedia, consumer electronics and other application areas.
View Datasheet(PDF)
C906 Features Industry Applications
Features
XMAE (XuanTie Memory Attribute Extension)
technology for memory management
Data prefetching
Multi-channel and multi-mode data prefetching technology to improve data bandwidth significantly
Slide left and right to view the architecture
Industry Applications
Computer Vision
Smart Home
Industrial Interconnection
Network and Communication
Intelligent Identification
Information Security

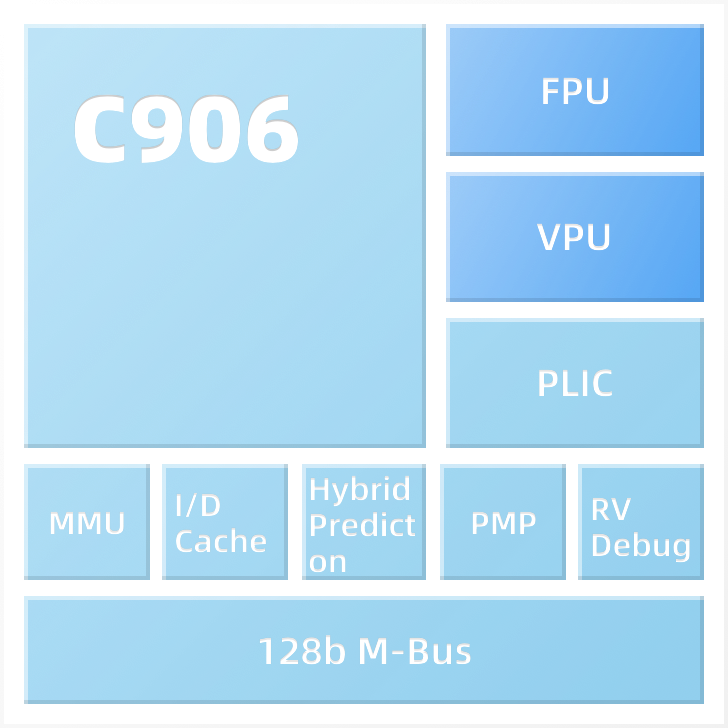

Architecture Features
Instruction set
XuanTie ISA
(compatible with RV64IMA[F][D]C[V])
Microarchitecture
Single-issue in-order execution, 5-stage integer pipeline
General purpose register
32 64-bit GPR, 32 64-bit FGPR, 32 128-bit VGPR
Vector execution unit
RISC-V Vector Extension to support SIMD
calculation of INT8/INT16/INT32/INT64 and FP16/FP32/FP64 and BFP16 new data format
Cache
Optional I-Cache and D-Cache, 8-64KB
Mixed branch prediction
Optional 8Kb/16Kb branch history table, branch target buffer and return address stack
Bus interface
128-bit single bus access interface
MMU
Sv39 memory management, 128/256/512 TLB table entry
Physical memory protection
Optional 0-16 protection regions
Interrupt
PLIC interrupt controller to support up to 1023 external interrupts
Performance monitoring unit
RISC-V standard performance monitoring unit
Debugging
Support RISC-V Debug protocol standard,
support IAR, Segger, Lauterbach and other third party IDE/debugging software
Slide left and right to view the architecture
basic
configurable
Technical Features
XMAE (XuanTie Memory Attribute Extension)
technology for memory management
Data prefetching
Multi-channel and multi-mode data prefetching technology to improve data bandwidth significantly
